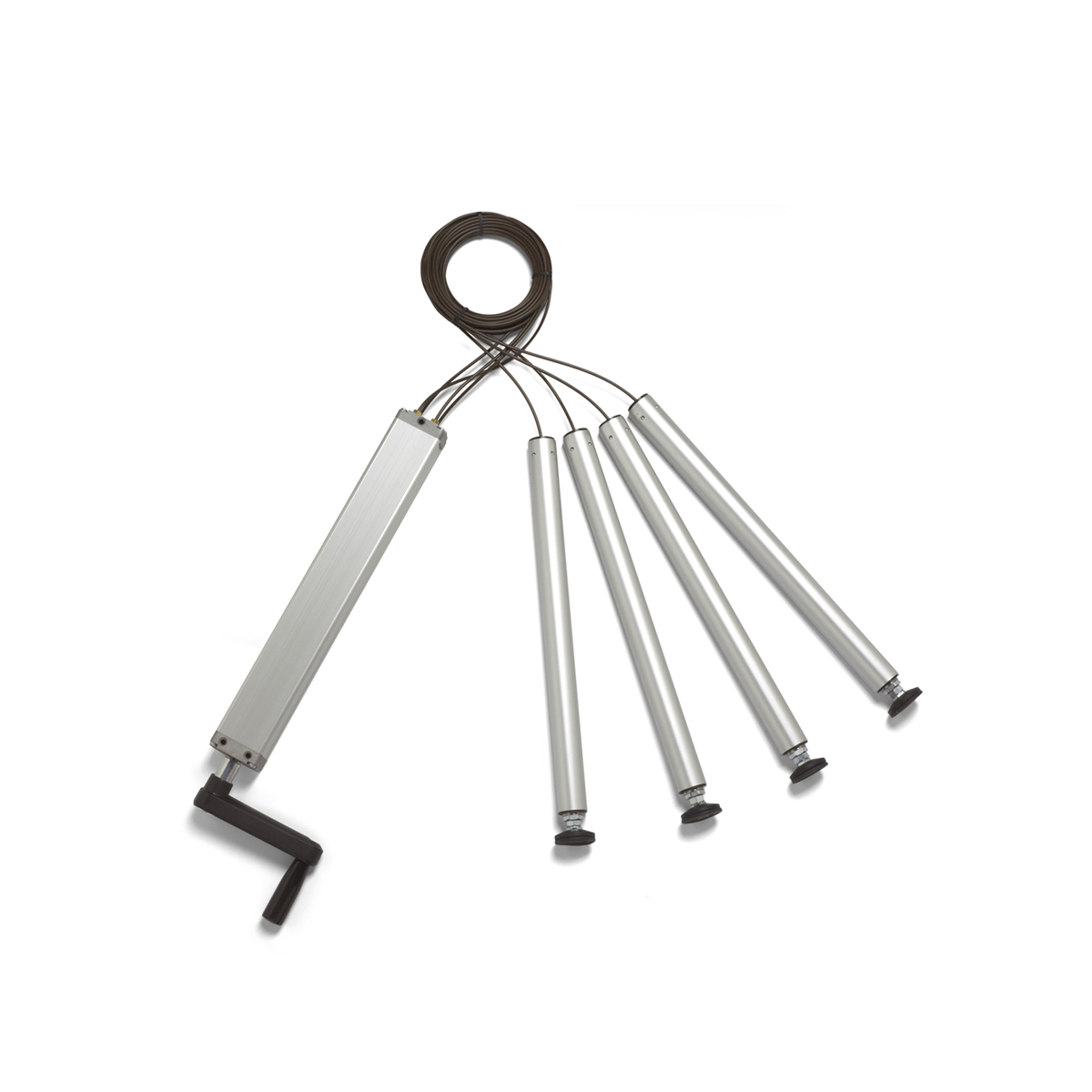

The Crank Driven System is our most popular system. The bolt-on system is supplied as a retrofit kit and will bring your space to a new level.
Crank Driven Systems
Next to the Part Number are zip files containing 3D CAD in .STP & .X_T
Crank Driven PDF Drawings:
Pump | Cylinder | Glide |Hand Crank
For the charted drawings refer to the Pump and Cylinder part numbers below.
| Lift Capacity | Stroke | Part Number | Pump | Cylinder (x4) | Purchase |
|---|---|---|---|---|---|
| 340 / 750 (kg/lbs.) | 150 / 5.9 (mm/in.) | MLS-00001 .STP .X_T | Q4809 | CB415 | Buy Now! |
| 340 / 750 (kg/lbs.) | 200 / 7.9 (mm/in.) | MLS-00002 .STP .X_T | Q4812 | CB420 | Buy Now! |
| 340 / 750 (kg/lbs.) | 300 / 11.8 (mm/in.) | MLS-00003 .STP .X_T | Q4818 | CB431 | Buy Now! |
| 340 / 750 (kg/lbs.) | 400 / 15.7 (mm/in.) | MLS-00004 .STP .X_T | Q4824 | CB440 | Buy Now! |
| Lift Capacity | Stroke | Part Number | Pump | Cylinder (x4) | Purchase |
|---|---|---|---|---|---|
| 454 / 1000 (kg/lbs.) | 150 / 5.9 (mm/in.) | MLS-00005 .STP .X_T | Q4612 | CB415 | Buy Now! |
| 454 / 1000 (kg/lbs.) | 200 / 7.9 (mm/in.) | MLS-00006 .STP .X_T | Q4615 | CB420 | Buy Now! |
| 454 / 1000 (kg/lbs.) | 300 / 11.8 (mm/in.) | MLS-00007 .STP .X_T | Q4623 | CB431 | Buy Now! |
| 454 / 1000 (kg/lbs.) | 400 / 15.7 (mm/in.) | MLS-00008 .STP .X_T | Q4631 | CB440 | Buy Now! |
| Lift Capacity | Stroke | Part Number | Pump | Cylinder (x4) | Purchase |
|---|---|---|---|---|---|
| 590 / 1300 (kg/lbs.) | 150 / 5.9 (mm/in.) | MLS-00080?.STP .X_T | Q4615 | CB615 | Buy Now! |
| 590 / 1300 (kg/lbs.) | 230 / 9.1 (mm/in.) | MLS-00081?.STP .X_T | Q4623 | CB631 | Buy Now! |
| 590 / 1300 (kg/lbs.) | 300 / 11.8 (mm/in.) | MLS-00082?.STP .X_T | Q4631 | CB631 | Buy Now! |
| 590 / 1300 (kg/lbs.) | 393 / 15.5 (mm/in.) | MLS-00083 .STP .X_T | Q4639 | CB640 | Buy Now! |
